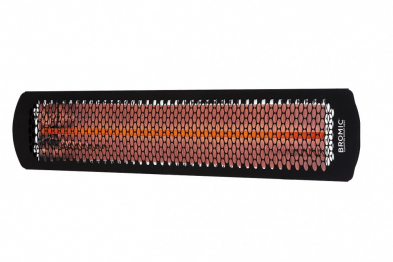

Bromic Heating Tungsten Smart-Heat™ 2000W Electric
Witness the art of smart-heating with Bromic Heating’s new Tungsten Smart-Heat™ Electric, an infrared electric heater blending aesthetics with function.
The Tungsten Smart-Heat™ Electric is stylishly designed to provide efficient directional heating for commercial and residential locations.
Available in 4 models of varying heating power and compatible with smart control systems to enable precise dimming control. Included are wall and ceiling mounting brackets to allow adjustable angle of the heating direction with simple one-touch on/off switch.
Heaters are equipped with a spectral reflector for excellent radiant heat output and are weatherproof. Minimum Mounting height requirement to ground-Minimum Mounting height requirement to ground.
- Bracket Length: 6.50
- ETL Certification: Yes
- Switch: On/Off
- Heaters Location: Commercial/Residential
About this Series
Tungsten - 2000 Watts Electric Single Element Heater. The Tungsten 2000 Watt Electric Single Element Heater series provide excellent infrared heat source for residential and commercial use. Equipped with a spectral reflector for waterproofing, this heater will provide an even distribution of radiant heat. The heater has a corrosion-resistant, high temperature coating to extend its life and performance. This series is available in 4 models to fit ranging in higher wattage to fit any sized outdoor patio.
Installation
Installation must be carried out by a licensed and authorized technician in accordance with local electrical codes. Please refer to our clearance requirements and consult the installation manual for further details.
Specifications
Please reference the specification guide below to help you select the correct solution for your needs.
| MODEL NUMBER | 2000 SERIES | 3000 SERIES | 4000 SERIES | 6000 SERIES |
| FUEL TYPE | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC |
| COLOR | BLACK | WHITE | BLACK | WHITE | BLACK | WHITE | BLACK | WHITE |
| MODEL # |
|
|
|
|
| HEAT AREA | 65ft2 | 100ft2 | 130ft2 | 160ft2 |
| RATED CURRENT ** | 240V/8.3A 208V/9.62A 277V/7.22A |
240V/12.5A 208V/14.42A 277V/10.83A |
240V/16.6A 208V/19.23A 277V/14.44A |
240V/25A 208V/28.85A 277V/21.66A |
| MINIMUM FLOOR CLEARANCE | WALL 72” CEILING 96” |
WALL 72” CEILING 96” |
WALL 72” CEILING 96” |
WALL 72” CEILING 96” |
| CONTROL OPTIONS | ||||
| ON | OFF | ✓ | ✓ | ✓ | ✓ |
| DIMMER REMOTE | ✓ | ✓ | ✓ | ✓ |
| MASTER REMOTE * | ✓ | ✓ | ✓ | ✓ |
* Independently control up to six zones of heaters with unlimited heaters per zone from a single control. Please note a dimmer controller is required. Control operates within 100ft of heaters.
** Available in varying voltages: 240V, 208V and 277V
