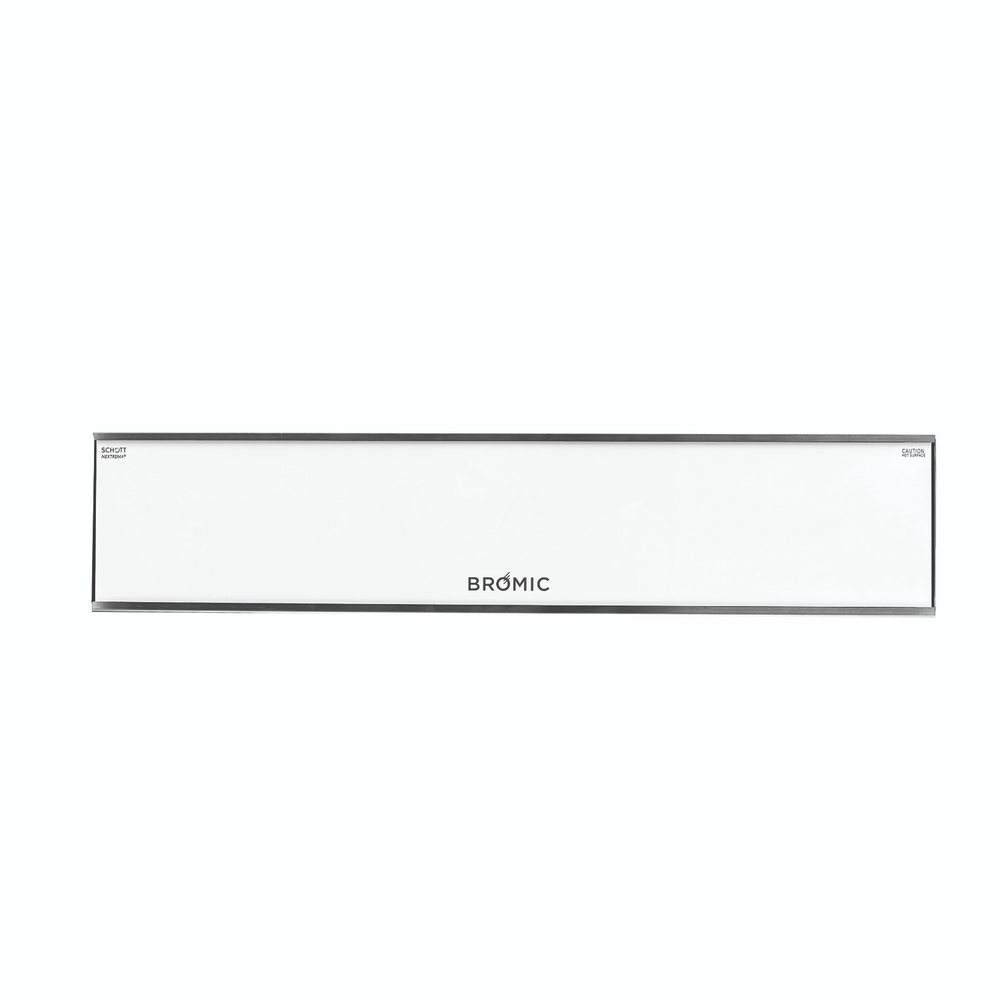

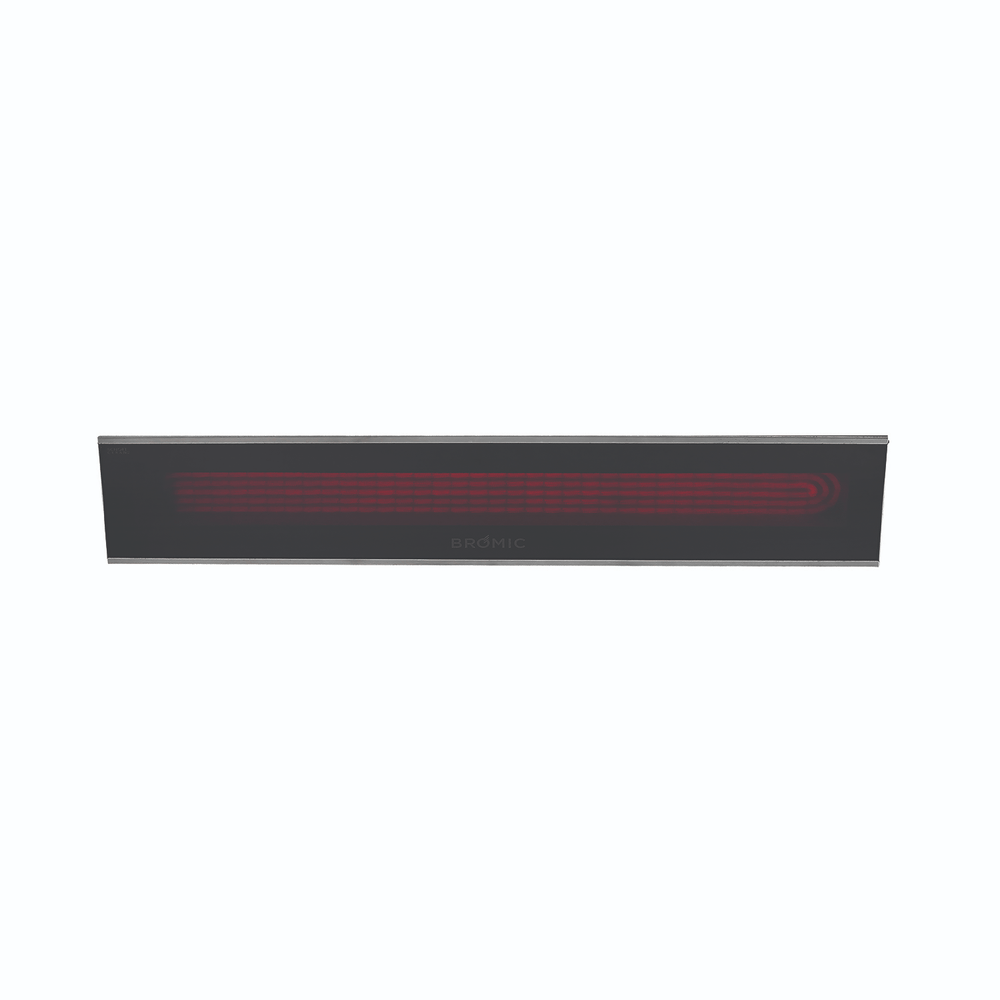

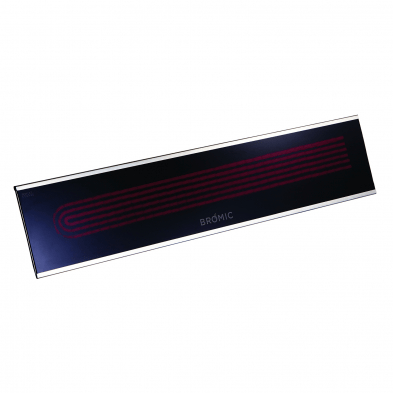

Bromic Heating Platinum Smart-Heat™ 4500W Electric Marine
Bromic's Platinum Electric Marine series was designed to overcome installation obstacles in coastal regions where typical stainless steel can corrode. Constructed with superior materials, an enclosed body and a low-maintenance ceramic-glass surface, the heater is guaranteed for five years (on land only). It is available in white or black, and can be wall, ceiling, or recessed mounted. The perfect option for enriching comfort on coastal homes, superyachts and cruise ships.
Features
- Electric Heater
- Marine Grade = 316 Stainless Steel
- 4500 watts
- 220v / 14.2 amps
- 208v
Installation
Installation must be carried out by a licensed and authorized technician in accordance with local electrical codes. Please refer to our clearance requirements and consult the installation manual for further details.
Specifications
Reference the specification guide below to help you select the correct solution for your needs.
| MODEL | 2300W MARINE SERIES | 2300W MARINE SERIES | 3400W MARINE SERIES | 3400W MARINE SERIES | 4500W MARINE SERIES | 4500W MARINE SERIES |
| FUEL TYPE | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC |
| COLOR | BLACK | WHITE | BLACK | WHITE | BLACK | WHITE |
| MODEL # | BH0320015 | BH032001 | BH0320016 | BH0320018 | BH3622002 | BH3622003 |
| HEAT AREA | 65ft2 | 65ft2 | 108ft2 | 108ft2 | 143ft2 | 143ft2 |
| RATED CURRENT * | 220-220V/9.6A 208V/11.1A** |
220-220V/9.6A 208V/11.1A** |
220-240V/14.2A 208V/16.3A** |
220-240V/14.2A 208V/16.3A** |
220-240V/18.8A 208V/21.6A** |
220-240V/18.8A 208V/21.6A** |
| MINIMUM FLOOR CLEARANCE | Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
| CONTROL OPTIONS | 2300W MARINE SERIES | 3400W MARINE SERIES | 4500W MARINE SERIES |
| ON | OFF | ✓ | ✓ | ✓ |
| DIMMER REMOTE | ✓ | ✓ | ✓ |
| MASTER REMOTE *** | ✓ | ✓ | ✓ |
*Available in varying voltages: 220/240v and 208V.
**208V version recommended for land-based commercial applications only and not Lloyd’s Register Certified.
***Independently control up to six zones of heaters with unlimited heaters per zone from a single remote. Dimmer controller required. Control operates within 100ft of heaters
